Postby zeptrader » Sat May 19, 2012 10:08 am

Its about time I started my Bounty diary again somewhere..and here looks cosy enought.

This was started years ago, when Del Prado first released it, Ive collected it, stored it, moved house, had more kids, had grandchildren and it sits in a cupboard (not gathering dust) waiting for me to just finish the masts and rigging, but what is holding me back is as soon as I add the mast's it wont go back in the cupboard, so I need to find away of displaying it without getting it covered in dust or knocked...so it begins..again.

I have loads of pictures of the build but not right from the start so I'll just add what I have and take it from there.




A new deck done with Tanganyka Strip.



Most scratch built..the kit part were trash.













I'll bung some more later...
Colin
zeptrader
Sergeant Major
Sergeant Major

Posts: 369
Joined: Sat Jun 18, 2011 7:07 am
Karma: 78

Re: Zeptrader's HMAV Bounty

Postby Mark » Sat May 19, 2012 10:34 am

Looks like a nice tidy build Colin. I reckon it'll be a cracker when it's finished.
Cheers
Mark

If you nose runs and your feet smell, you're upside down !
User avatar
Mark
Site Admin
Site Admin

Posts: 16048
Joined: Wed Aug 26, 2009 10:44 pm
Karma: 414

Re: Zeptrader's HMAV Bounty

Postby BigG » Sat May 19, 2012 12:10 pm

Great to see your bounty build diary Colin. I had followed it previously on another forum. It was your build diary which give me the urge to get mine out of storage and finish her. Looking forward to seeing yours complete.
I CAN RESIST EVERYTHING EXCEPT TEMPTATION
User avatar
BigG
Sergeant Major
Sergeant Major

Posts: 393
Joined: Mon Sep 05, 2011 11:05 am
Location: Ballyclare
Karma: 49

Re: Zeptrader's HMAV Bounty

Postby Eric » Sat May 19, 2012 12:54 pm

Looks really good Colin.
Building;
HMS Hood
Tiger Tank
RMS Titanic

Built;
Bismarck
User avatar
Eric
Colonel
Colonel

Posts: 3392
Joined: Wed Aug 26, 2009 11:01 pm
Location: Argyll Scotland
Karma: 169

Re: Zeptrader's HMAV Bounty

Postby zeptrader » Sat May 19, 2012 5:17 pm

Thanks for all you comments, more picture of my progress, again Ive scratch build loads of parts with the help of McKay's book.
















More to come, just to remind you this was (and still is) my first attempt at making a wooden ship, some kit parts were badly moulded but I still used them.

thanks
Colin
zeptrader
Sergeant Major
Sergeant Major

Posts: 369
Joined: Sat Jun 18, 2011 7:07 am
Karma: 78

Re: Zeptrader's HMAV Bounty

Postby zeptrader » Sat May 19, 2012 5:25 pm

And on we go with more pictures, at this time I had taken over my little outhouse brick shed that prevented any rows with 'er in doors'.:)













some deck rigging to come next, hope you like the model so far.

thanks
Colin
zeptrader
Sergeant Major
Sergeant Major

Posts: 369
Joined: Sat Jun 18, 2011 7:07 am
Karma: 78

Re: Zeptrader's HMAV Bounty

Postby zeptrader » Sun May 20, 2012 8:01 am

Time for some detail work, not sure how correct this all is but it looks ok to me.


















Colin
zeptrader
Sergeant Major
Sergeant Major

Posts: 369
Joined: Sat Jun 18, 2011 7:07 am
Karma: 78

Re: Zeptrader's HMAV Bounty

Postby mike » Sun May 20, 2012 1:22 pm

Brillant job Colin :clap: :clap:
Have a well deserved K

mike
mike
Captain
Captain

Posts: 1125
Joined: Fri Nov 13, 2009 10:51 pm
Location: READING
Karma: 113

Re: Zeptrader's HMAV Bounty

Postby GrantJ » Tue May 29, 2012 12:31 pm

Great job!!!!! Have a K :D

Tempts me to pull mine out of storage but unfortunately my work area is a bit full with Victory and Hoods at moment
So many models, so little time!

Building:
HMS Victory
HMS Hood
Akagi
Bounty (on hold)

Built:
Bismarck
User avatar
GrantJ
Lieutenant
Lieutenant

Posts: 899
Joined: Wed Jan 20, 2010 10:39 am
Location: Johannesburg, South Africa
Karma: 126

Re: Zeptrader's HMAV Bounty

Postby zeptrader » Fri Jun 01, 2012 6:13 am

thanks for the comments..heres a few more















Colin
zeptrader
Sergeant Major
Sergeant Major

Posts: 369
Joined: Sat Jun 18, 2011 7:07 am
Karma: 78

Re: Zeptrader's HMAV Bounty

Postby COENIE » Fri Jun 01, 2012 6:20 pm

Magnificent work, Colin. :clap: :clap:
I started here ... viewtopic.php?f=57&t=228#p1377
and is now finish with ... viewtopic.php?f=48&t=339
User avatar
COENIE
Lieutenant
Lieutenant

Posts: 988
Joined: Sun Nov 15, 2009 4:03 pm
Location: Sasolburg South Africa
Karma: 111

Re: Zeptrader's HMAV Bounty

Postby zeptrader » Sat Jun 02, 2012 8:01 am

thanks :D








zeptrader
Sergeant Major
Sergeant Major

Posts: 369
Joined: Sat Jun 18, 2011 7:07 am
Karma: 78

Re: Zeptrader's HMAV Bounty

Postby zeptrader » Sat Jun 02, 2012 8:41 am

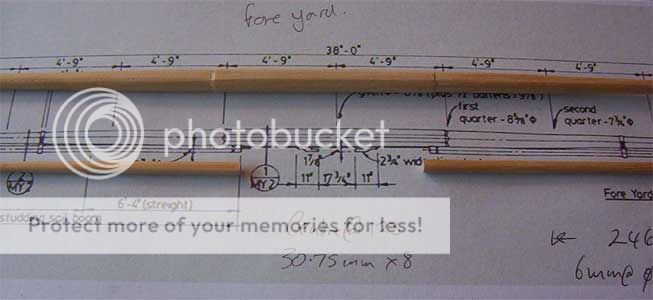

I was now at the mast stage of the magazine, the dowl that was supplied over 10 years ago with this kit was total rubbish, bend twisted you name it, there was no way I was going to use that, I decided on making my own. I searched the net for idea's and came up with this one..it worked out really well.

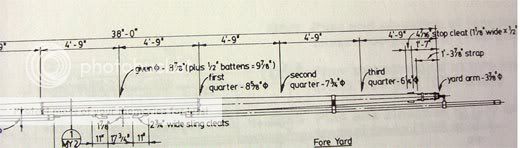

An exact sized photocopy of the mast' from McKays book.




First was to get the correct lenght from square stock, then shape both ends by simple cutting, then filling down the 4 side's to 8, then 16 ect ect.

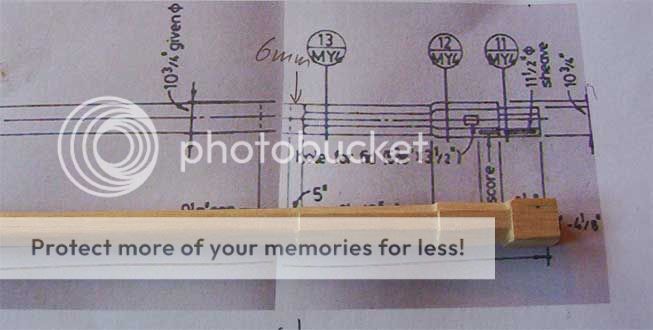

It does take some time but I already had the wood, it was good for the job and no outlay on my part.



This fore top mast is all one piece..I'm quite proud of it:)


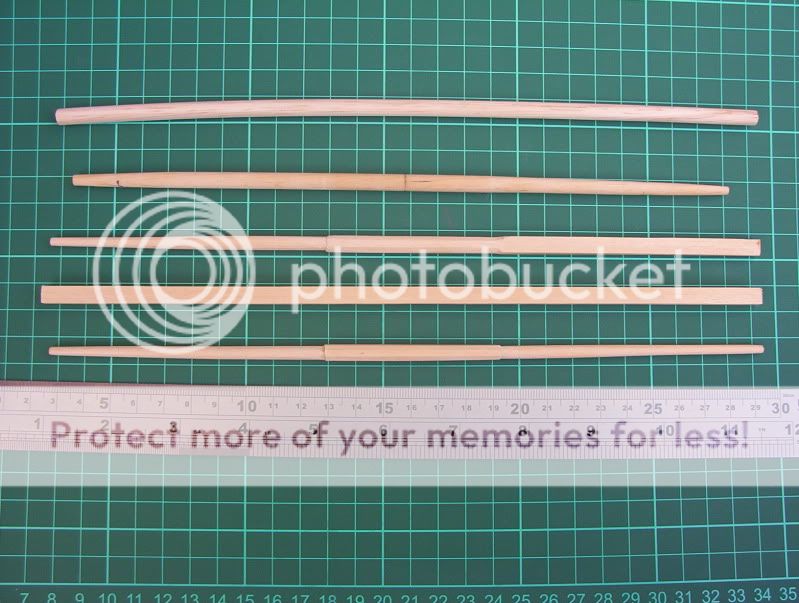

A - the original dowl supplied over 10 years ago..not going to happen!
B - Dowl sanded and shaped..not working!
C - Square stock..lets see
D - First attempt at one end first..now this is working!
C - Sorted, I like it.

This give you a better Idea of how bad the wood was.

Thanks
Colin
zeptrader
Sergeant Major
Sergeant Major

Posts: 369
Joined: Sat Jun 18, 2011 7:07 am
Karma: 78

Re: Zeptrader's HMAV Bounty

Postby Mark » Sat Jun 02, 2012 10:42 am

That must have been really bad wood to warp like that. Your results look great.
Cheers
Mark

If you nose runs and your feet smell, you're upside down !
User avatar
Mark
Site Admin
Site Admin

Posts: 16048
Joined: Wed Aug 26, 2009 10:44 pm
Karma: 414

Re: Zeptrader's HMAV Bounty

Postby zeptrader » Sat Jun 02, 2012 10:45 am

Thanks Mark, well they were in the magazine plastic for over 10 years with at least 2 house moves and another child and 2 grandchildren.. :D

Colin
zeptrader
Sergeant Major
Sergeant Major

Posts: 369
Joined: Sat Jun 18, 2011 7:07 am
Karma: 78

Re: Zeptrader's HMAV Bounty

Postby zeptrader » Sat Jun 02, 2012 9:45 pm

scratch building some cleats..






not too bad I think, close enough.

a finished yard, I'll get a better picture soon, most scratch built.

Thanks
Colin
zeptrader
Sergeant Major
Sergeant Major

Posts: 369
Joined: Sat Jun 18, 2011 7:07 am
Karma: 78

Re: Zeptrader's HMAV Bounty

Postby Adauk » Fri Jun 08, 2012 6:19 pm

Hi Colin,
your Bounty is looking excellent, great work on the hull :clap:
I have this model to build as well, from 18 years ago. has it been that long :doh:
Live long and prosper
User avatar
Adauk
Sergeant Major
Sergeant Major

Posts: 235
Joined: Sat Jan 28, 2012 1:35 pm
Location: Birmingham UK
Karma: 69

Mast height HELP!!!

Postby zeptrader » Sun Sep 09, 2012 8:01 am

I wonder any of those who have the Del Prado Bounty would do me a favour, I have the main masts placed (Fore, Main, Mizzen) but to my eyes they all look to low, I have of course the magazine and the measurements that is asked but I'm not happy with the height.

What I'm asking is can someone measure from the deck to the base of the bibb on all 3 masts.

Thanks in advance

Colin
zeptrader
Sergeant Major
Sergeant Major

Posts: 369
Joined: Sat Jun 18, 2011 7:07 am
Karma: 78

Re: Zeptrader's HMAV Bounty

Postby zeptrader » Mon Sep 10, 2012 9:16 pm

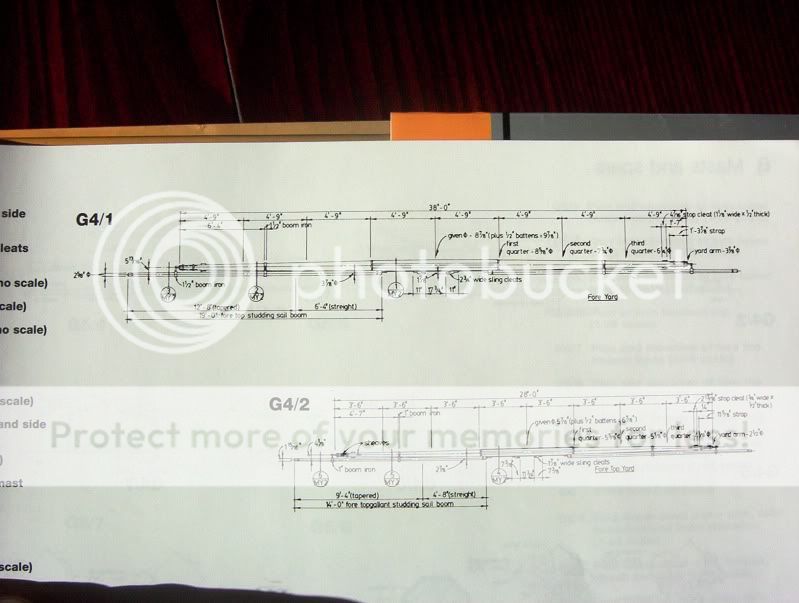

Ive just taken this picture to show my concerns regarding the magazine instructions for the height of the masts.


Mizzen @ 110mm, Main @ 155mm and Fore @ 130mm.

I have a re-scale calculator that ive used with much success before and have used the follow number to calculate.

The Model is 1.43, John McKays Bounty book has a inboard profile (page 56-57) in 1.96 scale. The measurement from deck to bibb in 1.96 is -

Mizzen @ 80mm, Main @90mm and Fore @80mm

After re-calculate.
Mizzaen@ 178.6mm, Main@200mm and Fore@178.6

That means the mizzen and Fore need to increase by 68.6mm and the main need to go up by 45mm????


Is this correct..???
zeptrader
Sergeant Major
Sergeant Major

Posts: 369
Joined: Sat Jun 18, 2011 7:07 am
Karma: 78

Re: Zeptrader's HMAV Bounty

Postby Mark » Mon Sep 10, 2012 9:29 pm

I think your calculations are correct. I would check a known/reliable.trusted measurement as well, just to make sure. I know when I've tried checking scales, I've corrected the one I thought was faulty, and then found that everything else was out as well, to differing degrees. McKays drawings are usualy good, but it's worth checking the printed scale. They sometimes have a 'ruler' along the bottom so you can measure the full sized dimensions, if you see what I'm trying to say.
Cheers
Mark

If you nose runs and your feet smell, you're upside down !
User avatar
Mark
Site Admin
Site Admin

Posts: 16048
Joined: Wed Aug 26, 2009 10:44 pm
Karma: 414

Next
